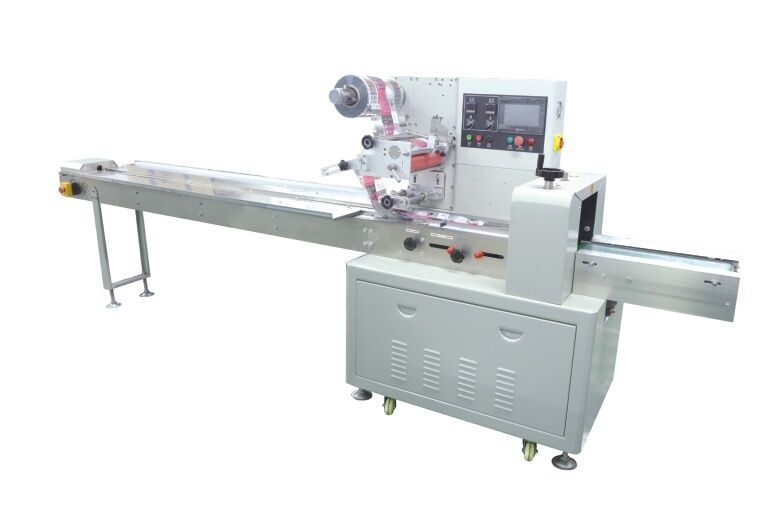

HY300-15 Packaging Machine

HY300-15 Packaging Machine

Description

Advantages
1. This automatic packaging machine is designed with sensors in every part from fabric feeding to finished product discharging. It will start automatic alarm system and stop running once failure or lack of material occurs. The specific problem can be shown on the touch screen, with no need of find the reason of breakdown, significantly raising work efficiency.
2. We have professional research and development team focusing on improving efficiency and optimizing automation.
3. We have established separate electronic department and CNC department. The electronic department is in charge of development and assembly of ultrasonic and circuits, while the CNC department is equipped with lathes and milling machines to control the quality of products.
Features
1. This horizontal packaging machine is equipped with Siemens PLC to ensure precise and stable operation.
2. Human-machine interface allows convenient and fast setting of parameter.
3. Main motor of this automatic packaging machine is designed with high-quality AC inverter to realize stepless transmission.
4. Photoelectric sensor tracking with two-way automatic compensation, accurate and reliable.
5. The horizontal packaging machine can be configured with nitrogen equipment and thermal code printer.
6. Stainless steel machine or machine with surface sprayed is available.
Note

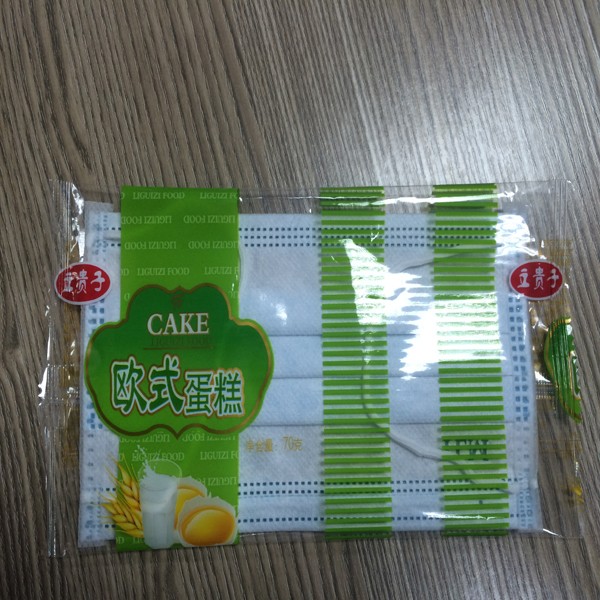

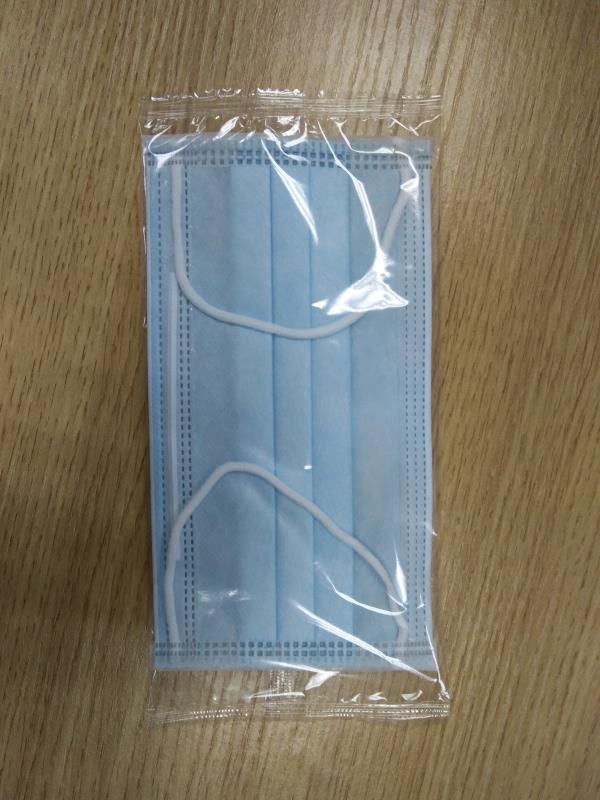

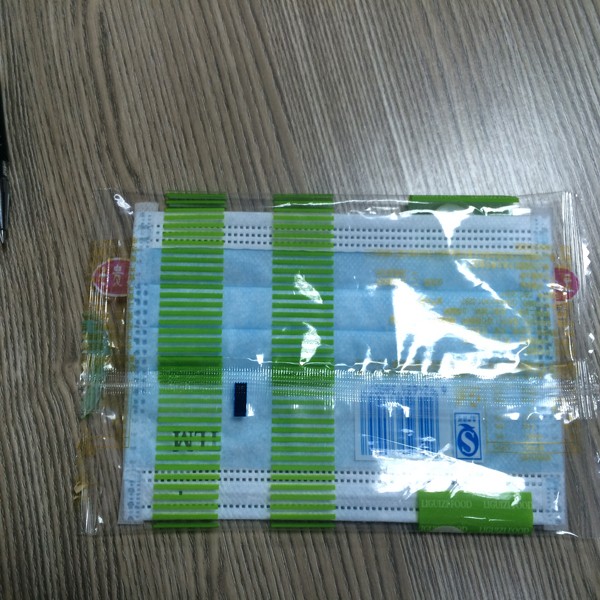

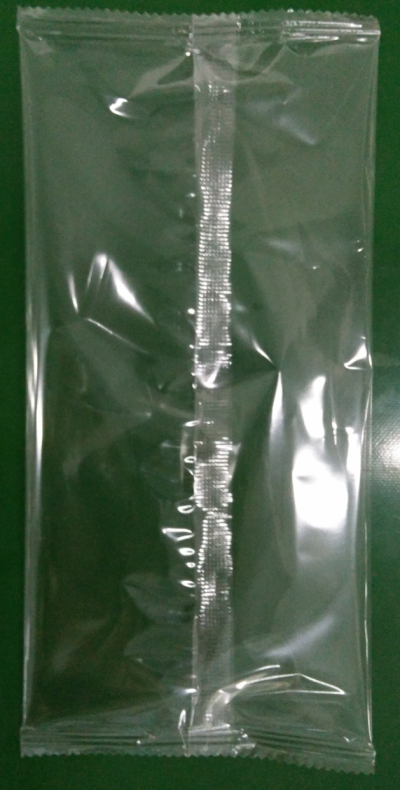

1. This horizontal packaging machine is suitable for manufacturing and processing non-woven disposable products.
2. Please confirm the machine size before purchasing as this automatic packaging machine requires 1-1.5 meter(s) of safe operation space beside it. Keep the operation environment dry and ventilated.
3. Please arrange engineers to our company for machine knowledge and operation training. Technicians not trained and authorized shall not operate the machine.
4. Our horizontal packaging machine enjoys 10 years’ service life if properly maintained.
Technical Parameter

Machine size

4000×880×1450mm

Output

200-300pcs/min

Voltage

Single phase, 220V

Power

2.4kW

:
